My Personal Kanban version 0.7.0 released

Kanban columnI’ve released a new version of My Personal Kanban. My Personal Kanban is a very simple in-browser Kanban Board application. It is designed to work with no Internet connection, persisting content in a modern browser’s data store. MPK can also store your Kanban encrypted in the Cloud with full data privacy.

New features follow closely previously delivered functionality extending into the specific requests by some MPK users raised on GitHub.

New features in the latest 0.7.0 release include:
• Importing previously exported Kanban from text (JSON) file. It’s a follow up on Export functionality from previous version.
• Change colour of a Column. This functionality comes with a new Column settings button.
• Possibility to select existing Kanban as a Template for New Kanban. If there is a specific structure, column names and colours that you like, you can reuse the setup when creating new Kanban.
• Each Kanban has a unique URL in the Browser address bar, which makes it possible to open or bookmark specific Kanban (this change forced me to introduce Angular.js router, a bit of info for devs).

As well as changes in the latest 0.7.0 release, there are also:
• Updates of libraries to latest versions
• Bugs fixes

As I’m getting closer to release of version 1.0.0, My Personal Kanban is getting future complete. Some of the new functionality that will come before final release includes:
• Pomodoro timer
• Blocked section in the columns
• Import/Export to CSV file

I’m also planning a Mobile version to follow on both iOS and Android platforms.

I would love to hear from you if you are using My Personal Kanban, in what way and what functionality is missing.

Greg

My approach to JSONP limitations

Why JSONP?

Kanban columnDuring the development of My Personal Kanban I stumbled across interesting problem. One of My Personal Kanban features that I was developing, was the possibility to upload Kanban to Google Cloud (Google App Engine application).

My Personal Kanban is designed to work off the local file system, without the need of Internet connection. It means that trying to send something into Interweb is going to hit modern Browser security settings.

The browser security feature prevents web request from being made to a site with a different domain. It also stops from making a request to anything other the same file if you have opened any web application from the local file system. This kind of behaviour is default across any modern web browser.

Fortunately, there is a special type of requests browser will allow happening and it’s JSONP. It’s a GET request with a callback parameter. Callback is a name of the function that the browser will call when it receives successful response from the web.

HTTP GET request limits

My Personal Kanban is written in JavaScript with Angular; server side on Google App Engine is a very simple Servlet written in Groovy.

When I finished my first implementation and started to test it locally with Google App Engine SDK it all looked good. However, upload stopped working when I tested with a real GAE deployment.

Quick research confirmed that different web server implementation might have different settings for Maximum Length of HTTP GET parameters. Those GET parameters are used to send JSONP request data to the web server. Google App Engine has different limit than GAE SDK (which uses Jetty).

I also discovered that the upload was working in one browser but stopped working in another. As it turns out, browsers have its own limits of length of HTTP GET request. It is literally the length of the URL you will put in your browsers address box.

My Personal Kanban is sending a bit of data. It’s not Megabytes, however still too much for the HTTP GET parameters.

Choices of workaround

I thought of writing My Personal Kanban as Chrome extensions. It would enable me to overcome the JSONP limitations however it would bind my application to work on Chrome only. So I ditched the idea.

I decided to chop data into small chunks and send it to the server. To minimize errors of the transfer I invented this Client-to-Server protocol:

  1. All calls during transmission to server are in order, so the data can be assembled in correct way.
  2. First a handshake is made announcing the beginning of transmission for specific user, with information of how many data chunks will be sent.
  3. Chunks of data are sent only if previous chunk was sent successfully.
  4. Finally MD5 hash of data is sent so the server can verify that what was received is correct.

On server side I decided to store chunks for a user in session which in case of Google App Engine is stored in Memcache backed by Data Store. What happens on the server:

  1. Server receives a handshake and creates new Array for data chunks (or removes previous one if transfer was not completed or not successful).
  2.  Server receives data chunks and places them in the Chunk Array stored in session.
  3. When server receives Kanban hash it concatenates the Array in order into String and validates against received hash. If the hash is valid it stores the Kanban in the Data Store.

Details and code samples

The uploaded Kanban is Encrypted with user key and kept on the Cloud encrypted to ensure data privacy. I’ve chosen Rabbit as encryption algorithm. As a side effect to encryption, transmitted data doesn’t need to be encoded and sanitized.
For encryption I’m using fantastic CryptoJS library. CryptoJS also includes MD5 hash implementation.


md5Hash : function(stringToHash){
	return CryptoJS.MD5(stringToHash).toString();
},

encrypt: function(stringToEncrypt, encryptionKey){
	var utfEncoded = CryptoJS.enc.Utf8.parse(stringToEncrypt);
	return CryptoJS.Rabbit.encrypt(utfEncoded, encryptionKey).toString();
},

decrypt: function(stringToDecrypt, encryptionKey){
	var notYetUtf8 = CryptoJS.Rabbit.decrypt(stringToDecrypt, encryptionKey);
	return CryptoJS.enc.Utf8.stringify(notYetUtf8);
}

Thanks to fantastic Angular Promise API it is very easy to implement ordered transmission of data.

var encryptetKanban = cryptoService.encrypt(kanban, this.settings.encryptionKey);
var kanbanInChunks = splitSlice(encryptetKanban, 1000);

var promise = sendStart(kanbanInChunks.length);
angular.forEach(kanbanInChunks, function(value, index){
	promise = promise.then(function(){
		return sendChunk(value, index + 1);
	});
});

return promise.then(function(){
	return checkKanbanValidity(encryptetKanban);
});

My Personal Kanban is Open Source project and available for browsing at https://github.com/greggigon/my-personal-kanban/

Conclusion

The above approach made it possible to upload data to the server from any browser eliminating issues related to default browser’s security settings.
Unfortunately it comes with a cost of more HTTP requests and custom server side coding.

For small amount of text data it is good enough for me, perhaps it would be good enough for you. Let me know your thoughts.

My Personal Kanban – use your own local cloud

I’ve finished new release of My Personal Kanban 0.5.0 and  version of My Personal Kanban Server. New Cloud features enable to Upload and Download Kanban to any Cloud server, accessible via web.

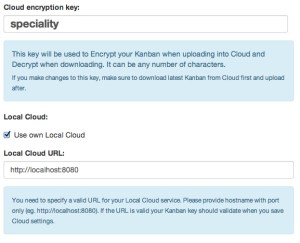

Cloud Setup Menu

My Personal Kanban Server will accept uploads and downloads from My Personal Kanban and store it on disk. You don’t need to generate key, however you can use the same one, you use with MPK Cloud.

Details of how to install server and run it can be found here: https://github.com/greggigon/my-personal-kanban-server .

Technology involved in the MPK Server

I decided to learn Clojure and write the Server in Clojure. I thought the problem was simple to implement it while learning new programming language. I’ve picked Ring to help me. It provided just enough to handle web requests and left me with everything else to code.

Clojure is great language and I hope I will be using it more in the future.



My Personal Kanban – Cloud storage encryption

Not too long ago I finished working on a new release of My Personal Kanban. It is a small Open Source project that I have been working on. The aim is to provide a very simple Offline Kanban board in a browser window.

The latest release contains one major improvement for Cloud Uploads. It encrypts (ciphers) Kanban with user provided Key before uploading it into the Cloud. Thus, there is no possibility to view or decipher Content of the Kanban as the Key is not uploaded to the Cloud but only stored in your browser local cache.

The only data stored by Cloud in the readable form are: username and email address. In the wake of recent Spying and Snooping events, I believe this feature of My Personal Kanban should provide ease for everyone concerned about their privacy.

Cloud Encryption key setup

I’m using Rabbit encryption algorithm from CryptoJS library.

The latest release 0.4.0 also includes some bug fixes and code cleanup. You can grab it from here.

Once you have the new version, when you upload for the first time, the Kanban will be encrypted.

Next release that I am currently working on, will include persistence to a local Cloud storage (a small version of Cloud application running on user network and user server).

Do Less to Do More – My Personal Kanban in the Clouds

Kanban columnAs you might already know I did a small application called My Personal Kanban, that serves as offline Kanban board. It’s HTML application which stores your Personal Kanban on your device. It free to use and Open Source.

I just released a new feature and service for My Personal Kanban that allows you to Upload and Download your Personal Kanban Boards to Cloud.

The service and functionality is in Beta phase but it would be great if you could give it a try and provide me with some feedback.

Heres a video of how the Cloud features work.

Here is the link to the previous post with Themes.

If you want to help me and contribute a Theme or some code, please do get in touch.

Greg

New features in My Personal Kanban, Kanban Themes and new Card details dialog

I did spent some time adding new feature requested by my Wife. Links, in card details field, are now supported as real HTTP links, which could be opened. I did remodel slightly the Kanban Card dialog to support that.

The other new feature is the possibility of changing look of Kanban.  The feature comes with easy way of adding own styles.

You can get a copy of the software here: http://greggigon.github.io/my-personal-kanban/

The video bellow is a quick overview of the new features.

How to update My Personal Kanban with your own styles

  1. You need to create a css file with styles and copy it into: my-personal-kanban-folder/styles/themes/ folder.  Name doesn’t matter, however you will need to use this name in last step. The default-bright.css and default-dark.css can be used as a starting point for your own styles.
  2. Prepare image capture for the new style and place it in my-personal-kanban-folder/img/themes/ folder. It should be a jpg no bigger than 150px in width with the same name as the css file (you can see that there are default-bright.jpg and default-dark.jpg in that folder already).
  3. Last step is to open the themes.js file from my-personal-kanban-folder/scripts/ folder (it will have a funny name like 5ebce75f.themes.js ) and add entry for your new theme. Name is the property that will be displayed in the Drop down. css is the property that will be used to find the css and jpg file prepared in steps 1 and 2.

If you want me to make the style a permanent member of My Personal Kanban, just make a pull request on GitHub. https://github.com/greggigon/my-personal-kanban

Greg

My Personal Kanban, offline Kanban board for personal use

I’ve just released new version of My Personal Kanban. You can check it out at http://greggigon.github.io/my-personal-kanban/ .

My Personal Kanban is offline Kanban Board that runs within web browser.

My Personal Kanban sample board
My Personal Kanban sample board

Why Kanban for personal stuff?

Kanban is lightweight enough to bend to my personal lifestyle and to the way I do things outside work. I used a simple TODO list but I wasn’t happy with it.

Kanban gives me clear overview of things that need to be done, things I’m working on and stuff I finished. It also provides way of prioritizing the work (by color coding or bubbling the most important tasks to the top of the columns) and clear visual aid for reviewing tasks.

By limiting Work in Progress I can make sure I stay focused on task and finish it. By looking at the last column with things done I can give myself a tap on the back for achieving task completion.

Have a go and try it. Greg
